RAD 1-10 ESC Electronic Speed Controller [Acuvance] 60688 60689 60690

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

RAD 1-10 ESC Electronic Speed Controller [Acuvance] 60688 60689 60690

RAD 1-10 ESC Electronic Speed Controller [Acuvance] 60688 60689 60690

Instructions Manual: https://acuvance.co.jp/pdf/download-english/p2_54.pdf

GRAB A REY STORM FAN AT THE SAME TIME AND SAVE!
https://supergdrift.com/product/combo-rad-esc-rey-storm-high-power-cooling-fan-acuvance-combo/



















*These ESC"s are all coming from factory SUPER-G SPEC. They will feature boost and turbo settings preset from factory. You will be able to enjoy your new ESC right away without updating or programming anything. Set your end points and go.


RAD


By adopting a new FET, full torque output characteristics are achieved! High-End brushless ESC equipped with reverse polarity protection circuit
in addition to PYRAMID Shape design that produces higher fan cooling effect

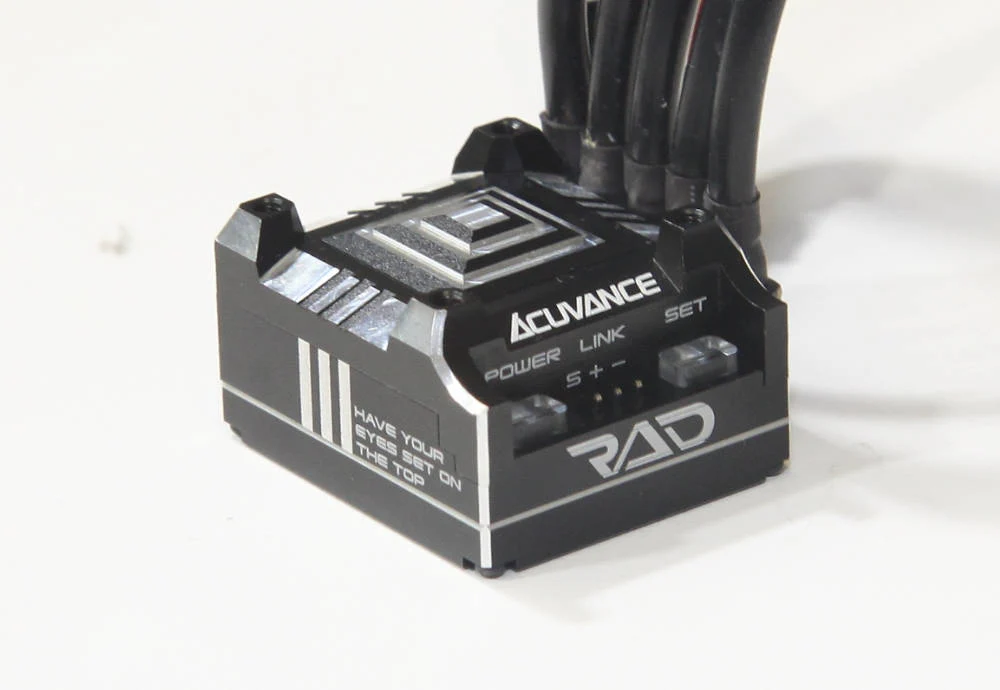

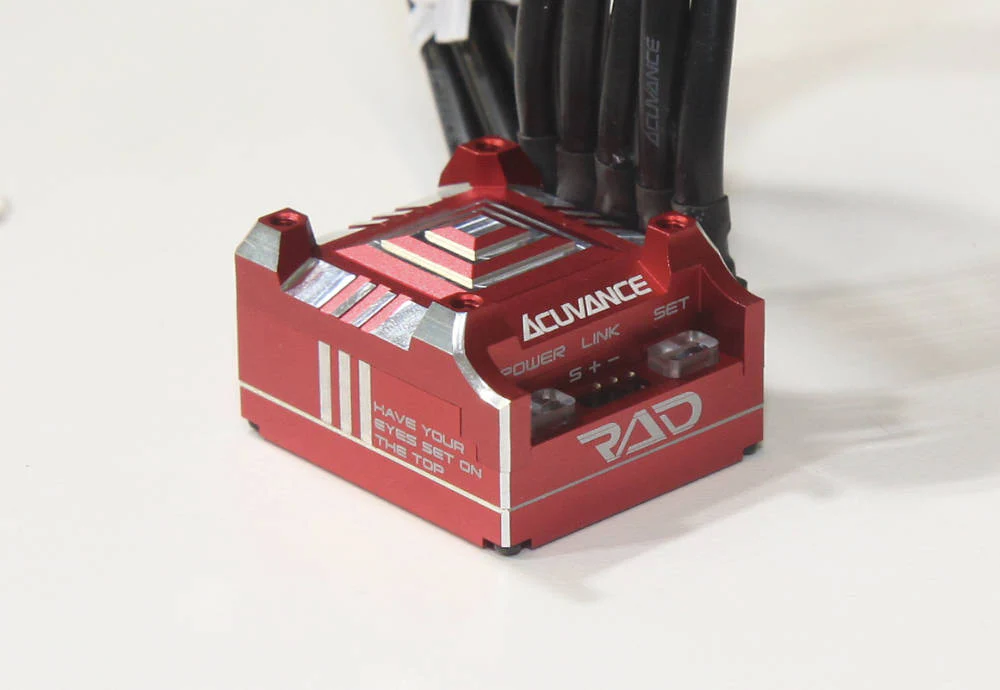

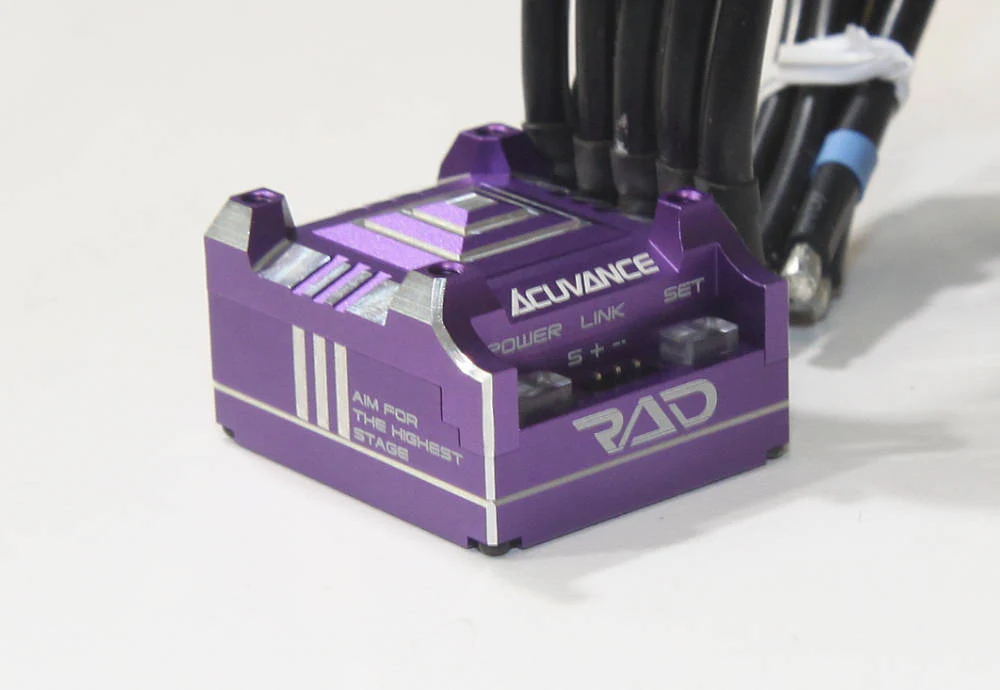

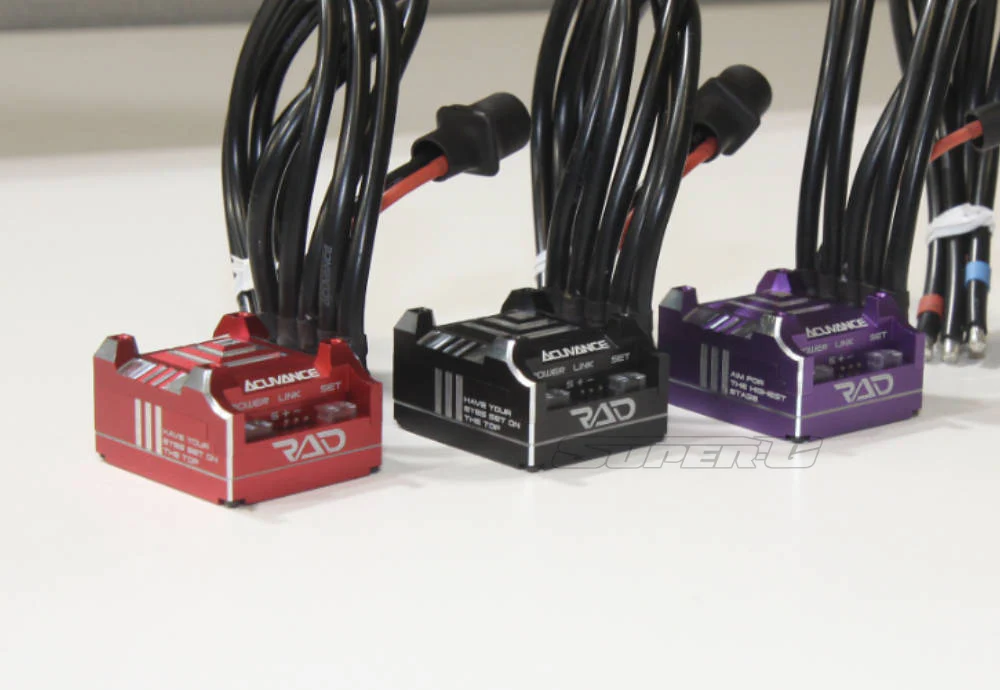

60688 Black, 60689 Red, 60690 Purple




FEATURESFeatures



FEATURES


● Realizes torqueful output characteristics by adopting new FET

By adopting a new power type FET, we have achieved more torqueful output characteristics while inheriting the silky feel unique to Acuvance.
It firmly follows aggressive throttle work from low speed range, enabling delicate and dynamic driving.
● Equipped with battery reverse connection protection circuit and "alert LED" in case of reverse connection.

The XARVIS XX is equipped with the popular reverse battery connection protection circuit.
Of course, it is also equipped with an "alert LED" to notify you of reverse connection. Prevents ESC board damage due to reverse connection for about 10 seconds.
*This circuit protects the ESC circuit board. We do not guarantee protection for the Chevalier series, standard installed capacitors, or external devices.

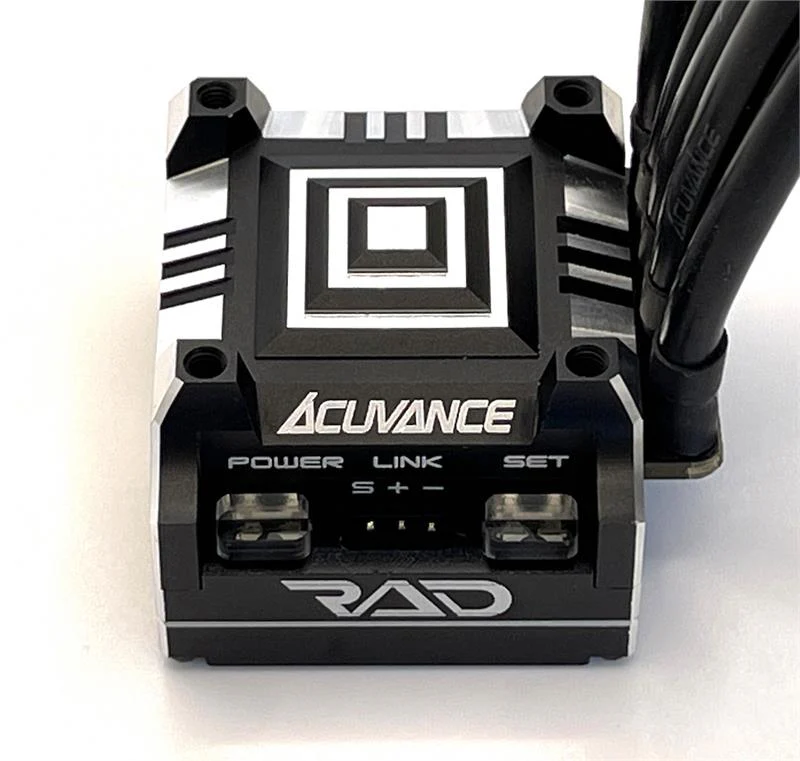

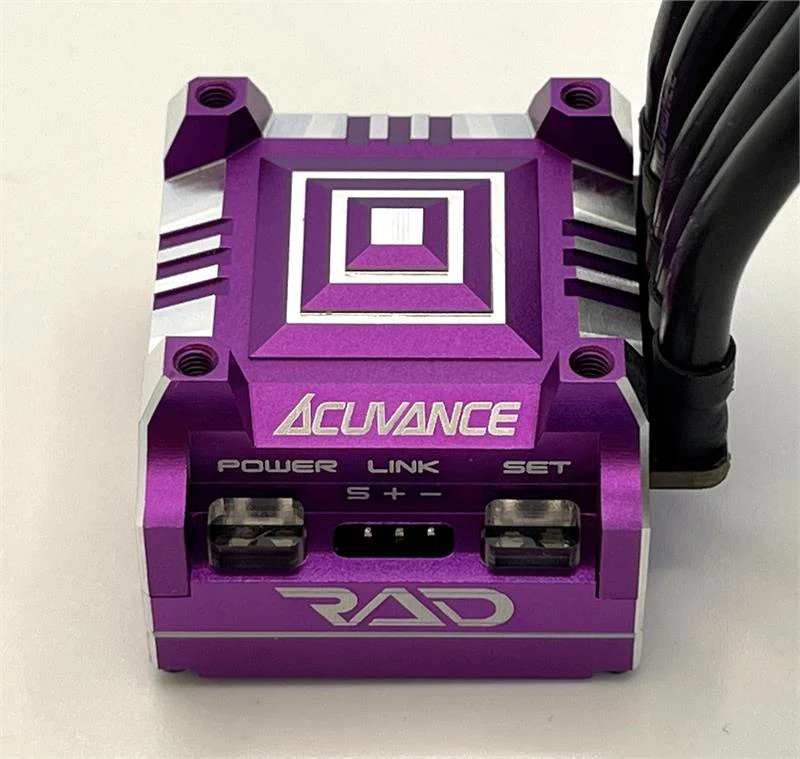

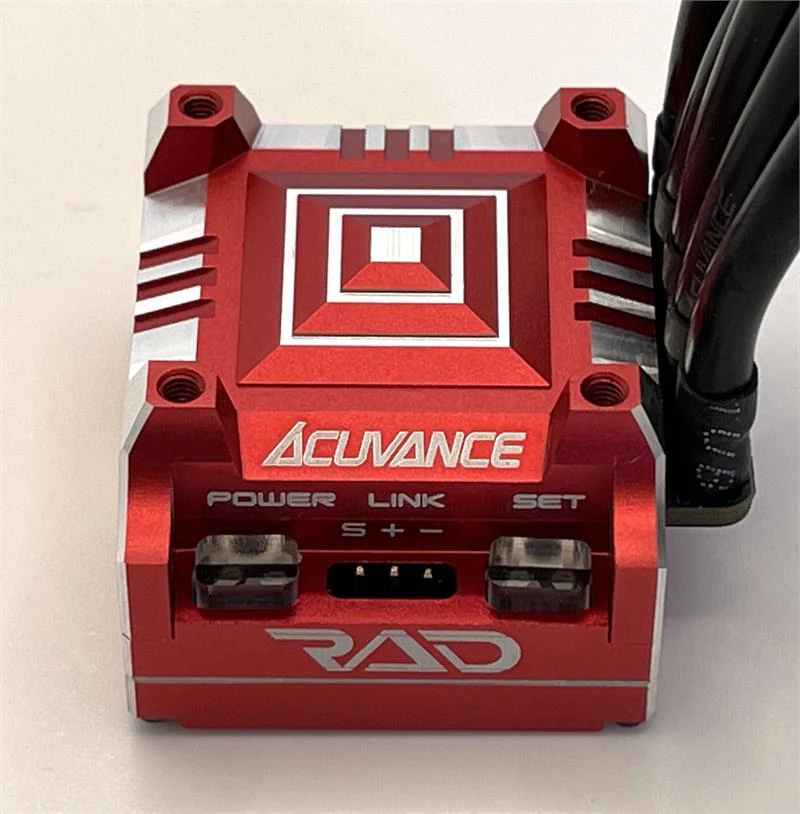

● PYRAMID Shape design produces higher cooling effect when equipped with FAN

The world's first pyramid-shaped top design is used.
The structure is designed to force the air to escape to the bottom and in all directions, and by suppressing bouncing wind (turbulence of airflow on the top surface) when a FAN is installed, a higher cooling effect and a reduction in the load on the FAN motor are achieved. did.


● Hologram cutting

Adopts hologram cutting technology for aluminum cutting on the top surface.
It creates a more luxurious and luxurious feel.
● Equipped with [torque level] and [torque end point] functions included in XARVIS XX.

By using the TAOⅢ or S.BUS compatible transmitter described below, you can use the [torque level] and [torque end point] functions installed in XARVIS XX.
[Torque level]…Adjust the torque feeling of acceleration/deceleration.
[Torque End Point]…Set the throttle range in which the torque level function operates.
*Torque level and torque end point functions cannot be set or set incorrectly when using our motors before LUXON BS or motors from other companies.
● Compatible with setting changes by TAOⅢ

RADSettings can be changed easily using the SET button on the main body, but
by using TAOⅢ, the number of items and values that can be set will be greatly expanded, and drivability will be dramatically improved.
*TAOⅢ (shipped by us before May 2022) needs to be updated .
After updating, select “ESC Select” command on TAOⅢ.RAD(MC971CR)”.
● Wireless communication is possible using FUTABA's S.BUS compatible transmitter.

If you are using an S.BUS compatible transmitter from Futaba Electronics Co., Ltd., you can transmit by connecting the separately sold S.BUS link adapter ( OP-15127 ) or S.BUS adapter ( OP-15067 ). You can use the telemetry function to change setting data using the machine's LCD screen and display motor rotation speed, ESC temperature, battery voltage, etc. on the transmitter in real time.

  • * It is necessary to update the S.BUS link adapter (shipped by our company before mid-June 2022) or S.BUS adapter (all applicable) .
  • *When updating the S.BUS adapter, in addition to the Windows PC/Update Device Kit II ( OP-15064 ) or III ( OP-15087 ), the separately sold "S.BUS Adapter Update Conversion Cable ( OP-15095) " is required. )” is required.
  • *Please contact Futaba Electronics Co., Ltd. for compatible transmitters. (It may be necessary to update the transmitter/receiver.)
    Please note that setting data cannot be saved in the transmitter , so please use TAOⅢ to save and manage setting data.
  • *Depending on the content of future updates, the items that can be set by TAOⅢ and the items that can be set by FUTABA's S.BUS compatible transmitter may differ.
● Status when boost turbo is not in use can be visually confirmed with LED

When the boost turbo is not in use, the standby LED flashes to comply with regulations such as touring tournaments that restrict the use of these functions.



https://www.youtube.com/watch?v=GyR969Rf8pk&ab_channel=Super-GDrift


Select Color
From $73.50

Original: $209.99

-65%
RAD 1-10 ESC Electronic Speed Controller [Acuvance] 60688 60689 60690—

$209.99

$73.50
