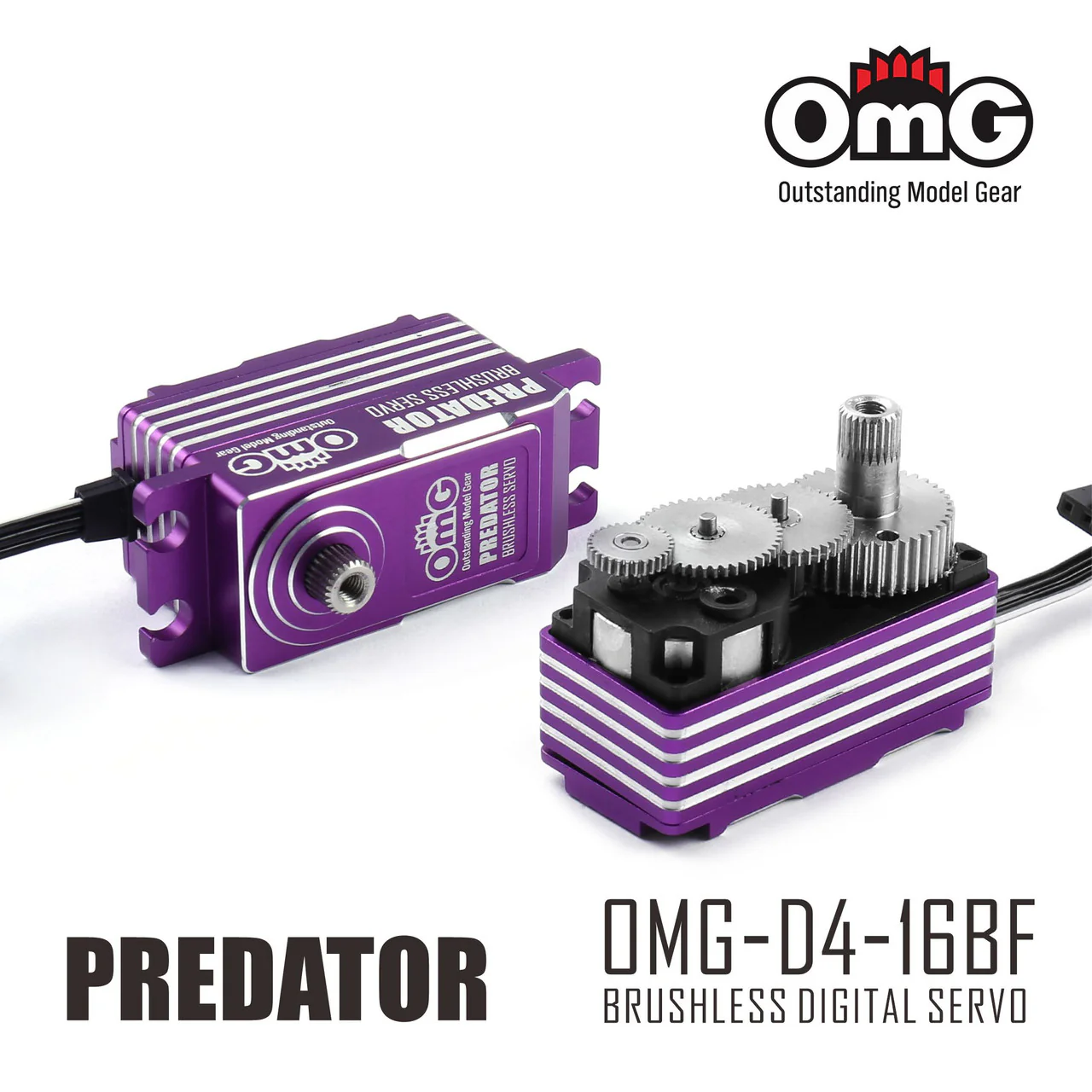

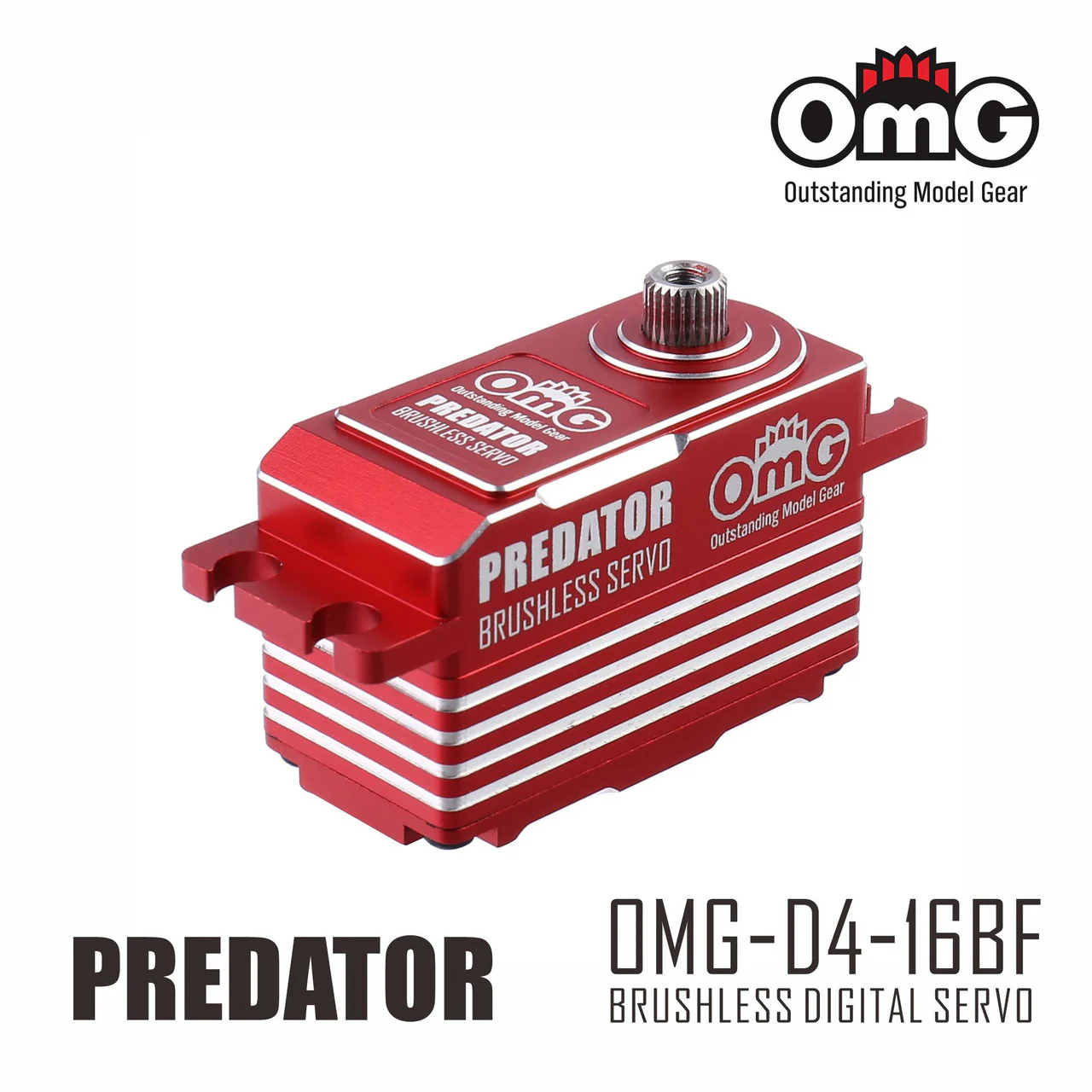

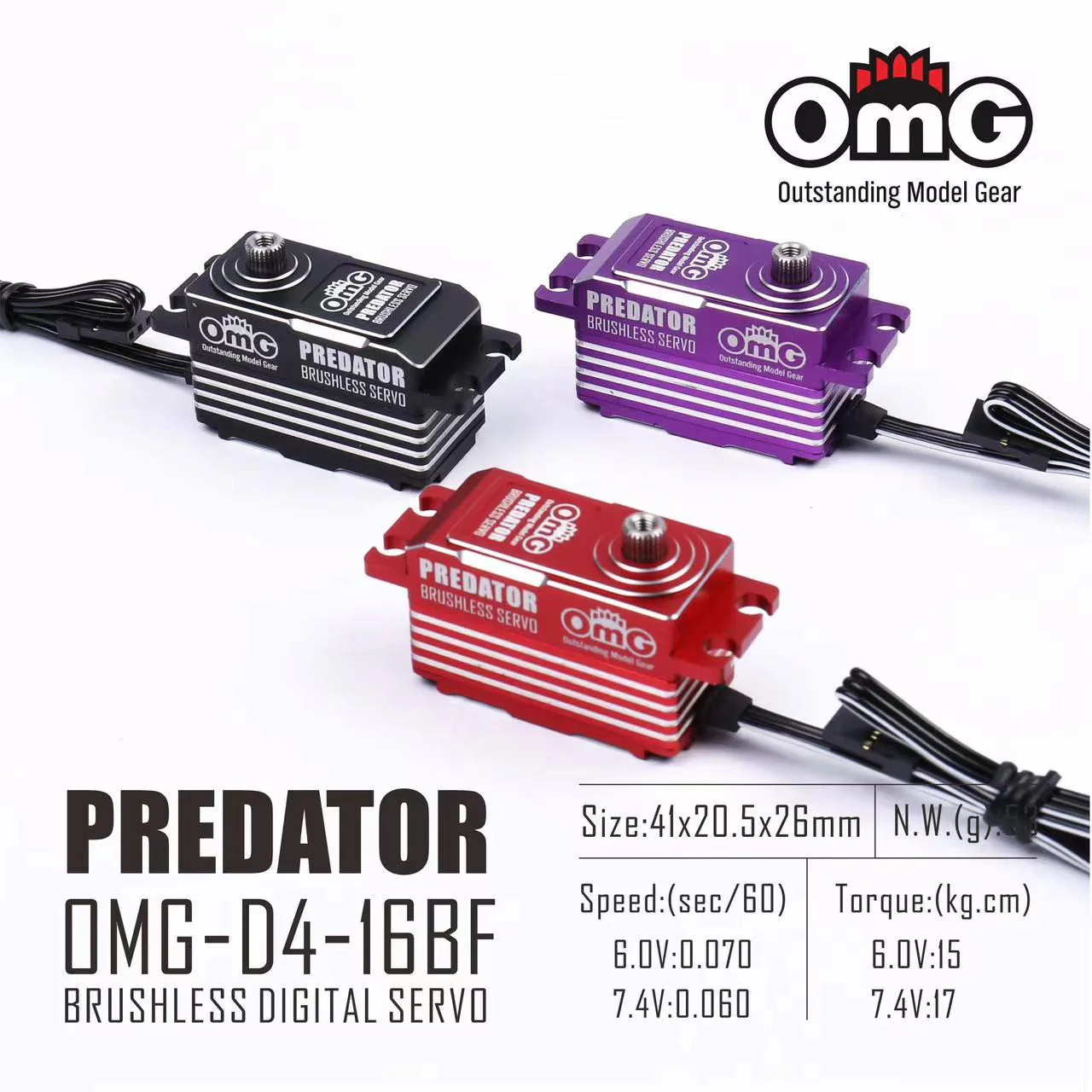

PREDATOR Low Profile High Torque Brushless Metal Servo for Drift (0.055/s @ 18kgf.cm)- Red Purple Black [OMG] OMG-D4-16BF
OMG-D4-16BF(PREDATOR)
Operating Voltage Range: 4.8 -8.4v
Bearing Type: Dual Ball Bearings
Speed: 4.8v (0.075/s) , 6.0v (0.070/s) , 7.4v (0.060/s) 8.4v (0.055/s)
Torque: 4.8v (13 kgf.cm) , 6.0v (15 kgf.cm) , 7.4v (17 kgf.cm) 8.4v (18 kgf.cm)
Limit angle: 120°± 10°
No-load Current (mA): 550max
Signal control method: PWM analog digital control
Connector Wire Gauge: 22 AWG Black Wire
Connector Type: JR
Frequency: 1520us/333Hz
Shaft: 5.9 * 25T
Tooth: 25T
Size: 41mm x 20.5mm x 26mm
Weight: 53g
For: 1/10th drifting cars,touring cars and FWD cars, characterized by high torque and moderate speed. Parameters can be tuned according to the driver's habits
Material: Aluminum Case
Color: BK/RD/VT
Type: Digital Brushless High Voltage Servo
Gears: Stainless Steel
Brushless Motor
Digital precision provides great accuracy and performance
Compatible with all types of Radio system
ESC Min BEC Output Recommendation: [email protected]
Product Information
Product Information
Shipping & Returns
Shipping & Returns
PREDATOR Low Profile High Torque Brushless Metal Servo for Drift (0.055/s @ 18kgf.cm)- Red Purple Black [OMG] OMG-D4-16BF
PREDATOR Low Profile High Torque Brushless Metal Servo for Drift (0.055/s @ 18kgf.cm)- Red Purple Black [OMG] OMG-D4-16BF
OMG-D4-16BF(PREDATOR)
Operating Voltage Range: 4.8 -8.4v
Bearing Type: Dual Ball Bearings
Speed: 4.8v (0.075/s) , 6.0v (0.070/s) , 7.4v (0.060/s) 8.4v (0.055/s)
Torque: 4.8v (13 kgf.cm) , 6.0v (15 kgf.cm) , 7.4v (17 kgf.cm) 8.4v (18 kgf.cm)
Limit angle: 120°± 10°
No-load Current (mA): 550max
Signal control method: PWM analog digital control
Connector Wire Gauge: 22 AWG Black Wire
Connector Type: JR
Frequency: 1520us/333Hz
Shaft: 5.9 * 25T
Tooth: 25T
Size: 41mm x 20.5mm x 26mm
Weight: 53g
For: 1/10th drifting cars,touring cars and FWD cars, characterized by high torque and moderate speed. Parameters can be tuned according to the driver's habits
Material: Aluminum Case
Color: BK/RD/VT
Type: Digital Brushless High Voltage Servo
Gears: Stainless Steel
Brushless Motor
Digital precision provides great accuracy and performance
Compatible with all types of Radio system
ESC Min BEC Output Recommendation: [email protected]
Original: $89.99
-65%$89.99
$31.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
OMG-D4-16BF(PREDATOR)
Operating Voltage Range: 4.8 -8.4v
Bearing Type: Dual Ball Bearings
Speed: 4.8v (0.075/s) , 6.0v (0.070/s) , 7.4v (0.060/s) 8.4v (0.055/s)
Torque: 4.8v (13 kgf.cm) , 6.0v (15 kgf.cm) , 7.4v (17 kgf.cm) 8.4v (18 kgf.cm)
Limit angle: 120°± 10°
No-load Current (mA): 550max
Signal control method: PWM analog digital control
Connector Wire Gauge: 22 AWG Black Wire
Connector Type: JR
Frequency: 1520us/333Hz
Shaft: 5.9 * 25T
Tooth: 25T
Size: 41mm x 20.5mm x 26mm
Weight: 53g
For: 1/10th drifting cars,touring cars and FWD cars, characterized by high torque and moderate speed. Parameters can be tuned according to the driver's habits
Material: Aluminum Case
Color: BK/RD/VT
Type: Digital Brushless High Voltage Servo
Gears: Stainless Steel
Brushless Motor
Digital precision provides great accuracy and performance
Compatible with all types of Radio system
ESC Min BEC Output Recommendation: [email protected]
