NEW V4 Version

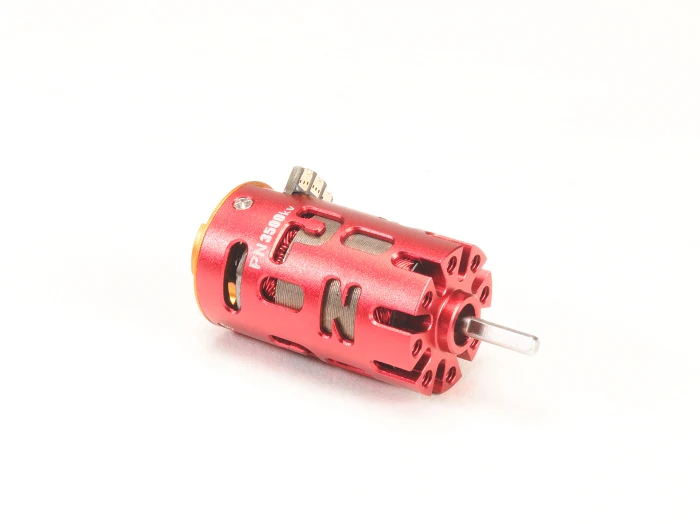

Motor Can

- the all new motor can has bigger and more ventilation holes allowing better heat dispersion thus providing better run time

- front section has evenly spaced mounting screws holes that is compatible and fits for all after market motor holder and chassis



End Cap

- newly designed end cap now comes with side locking screws that firmly secures the end cap and PCB.



Stator

- high temp wires used for longevity

- proprietary wiring producing better speed, torque and smoothness






Changeable armature
New design air vent gets more cooling
High-Temperature wire

15mm diameter motor can, same as normal brushed 130 motors. Fits in all Kyosho, PN, and aftermarket motor mounts.

Fits in all Mini-Z chassis AWD, F1, MR02, MR03, MR04

Much more torque and acceleration than other VE motors.

No loading RPM 22000 on 4.8V, amp draw only 0.28A

Four mounting holes to allow different angles of motor terminals.

Eight venting holes prevent heat buildup.

Can and end bell ball bearing from Japan.

Recommend gear ratio 3.95 to 5.00

Connection M1 to Orange Wire, M2 to Yellow Wire, M3 to Blue Wire

Recommend wire #700122

Replacement endbell screws #183002
